UV. TRANSILLUMINATOR 312 NM.

UV. TRANSILLUMINATOR 312 NM.


Cat. No. : 1MJC-MUV21-312
Brand : : Major Science

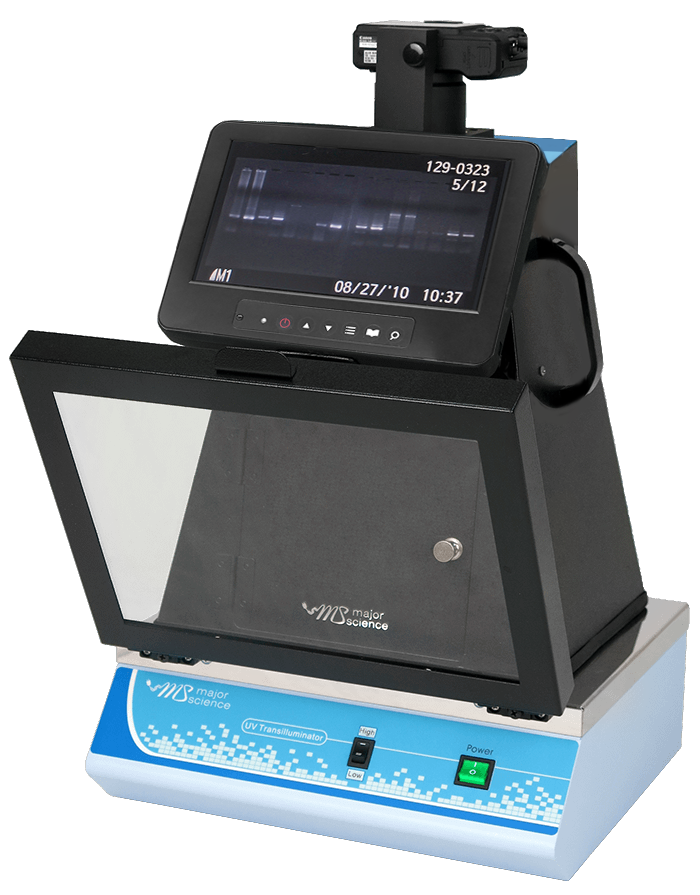

 The bench-top UV Transilluminator series offers the researcher uniform and intense sources of ultraviolet light (radiation) with a compact footprint. Their special design emits either one or dual intensity excitation UV wavelengths for back-illumination of transparent fluorescent materials. 254nm, 312 (302)nm, 365nm, 254 & 365nm, and 254 & 312 (302)nm modes are available for different applications. There are two choices of filter size viewing dimensions, 260x210mm and 210x210mm for different user requirements. The 365nm mode is offered for easily viewing gels under long wave for extended periods of time avoiding photo nicking damage. The 254nnm mode is used to irradiate samples. The 312 (302)nm mode is suggested for general gel operating. The single wavelength modes have a high intensity / low intensity switch equipped. All bench-top transilluminator modes are compact, lightweight and economical. A high performance model, 312 (302)nm UV Transilluminator with a strong lighting and longer life time tubes, was introduced for therequirement.

• 254nm or 312 (302)nm or 365nm or 254/365nm or 254/312 (302)nm modes available

• 26x21cm or 21x21cm view dimension

• High intensity / low intensity switch for single wavelength model

• Adjustable UV protection cover for better viewing angle efficiency

• High performance models available



• Long life time Filter



Model

MUV26 series

MUV21 series

Wavelength

254 / 312 (302) / 365nm

Filter Size

Approx. 10.2"x8.3" (260x210mm)

Approx. 8.3"x8.3" (210x210mm)

Light Source

6 tubes, 8W/tube

Filter

Long life filter

High efficiency reflector

Intensity Switch

High (100%)/Low (70%) intensity switch for single wavelength mode

Fast Start Up

High quality starter to simultaneously illuminate tubes when switched on and no blink

UV Resistant Plastic Cover (WxL)

Approx. 13"x9.8" (330x250mm)

Dimension (WxLxH)

Approx. 13.4"x11.6"x3.9" (340x295x100mm)

Weight

Approx. 16.5lb (7.5kg)

Rated Voltage

110V/220V~



Cat. No.

Product Description

MUV-T254

8W 254nm UV lamp

MUV-T312

8W 312 (302)nm UV lamp

MUV-T365

8W 365nm UV lamp

MUV-F21-254/365

210x210mm Filter for built-in 254/365nm UV Transilluminator (with stainless steel frame)

MUV-F21-312

210x210mm Filter for built-in 312(302)nm UV Transilluminator (with stainless steel frame)
