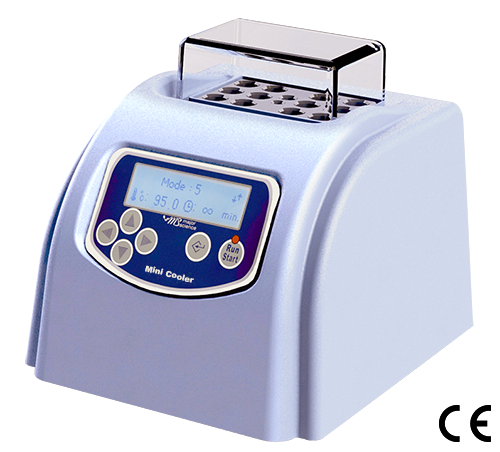

MINI COOLING AND HEATING DRY BATH, W/O BLOCK

MINI COOLING AND HEATING DRY BATH, W/O BLOCK


Cat. No. : 1MJC-MC-0203
Brand : : Major Science




 The product line Mini Cooling Dry Bath Incubator is the mini-series of our ultimate dry bath. It is designed to meet the requirement of accurate temperature control, ease of data transferring and programming, small foot print and ease of use. Experience the exceptional heating/cooling rate with quick start feature and the portability to work your sample on the road! Perfect instrument can be used in QC process such as in food industry



•  Small size, fits in your palm
•  User temperature calibration
•  Single molded chamber, no cracks or welds
•  PTFE coated chamber resists stains
•  Can be used as a mini water bath or bead bath
•  Outstanding heating and cooling rate
•  Different sizes of aluminum alloy block available for selection
•  Clear cover to ensure temperature uniformity
•  Quick start / Constant mode / programmable mode / Annealing
    program operation mode
•  Optional in car power adaptor provides portability on the road



proimages/4-Thermoblock_Reactor/Ordering_Info/MC-02-A001.png

 proimages/4-Thermoblock_Reactor/Ordering_Info/MC-02-A002.png

proimages/4-Thermoblock_Reactor/Ordering_Info/MC-02-A003.png

with block

with water

with beads


 proimages/4-Thermoblock_Reactor/Ordering_Info/MC-02-A005.png
Temp. set value: -6°C
Initial temp. value: 20.6°C
Block type: MD-MINI-B02
Process time: Approx. 20mins

proimages/4-Thermoblock_Reactor/Ordering_Info/MC-02-A004.png
Temp. set value: 100°C
Initial temp. value: 9°C
Block type: MD-MINI-B02
Process time: Approx. 20mins
proimages/4-Thermoblock_Reactor/Ordering_Info/MC-02-A006.png
Annealing Program



Initial Temp.  95.0
Descending Temp.  5.0
Holding Time.  5
Final Temp.  4.0



Cat. No.

MC-0203

Display

LCD

Power

max. 60W

Dimension (WxLxH)

Approx. 5.3"x6"x7.3" (135x152x185mm) (excluding lid)

Controller

High performance 32 bits microprocessor

Heating /Cooling Chamber

Molded waterproof aluminum alloy coated with PTFE

Temperature Control Range

30°C below ambient temperature (minimum -10°C) to 100°C

Temperature Increment

0.1°C

Temperature Uniformity

± 0.2°C at 37°C

Temperature Accuracy

± 0.25°C at 37°C

Temperature Calibration

Yes

Heating Rate

Max. 5°C per min

Cooling Rate

Max. 4°C per min

Timer

9999 (min)

Cooling/ Heating Parts

Peltier / Heating element

Operation Mode

Constant operation: constant temperature (-10°C to 100°C)

Program operation: 1-4 steps and up to 9 cycles

Annealing program

Quick start program: 4°C, 16°C, 37°C, 56°C, 95°C pre-set

Safety

Leak proof heating chamber

Operating Temperature

Ambient to 40°C

Special Feature

Can be used as water bath or bead bath incubator

Block Material

Aluminum alloy

Block Type

Standard and customized type are available

PC Connection

USB

Weight

Approx. 2.9lb (1.3kg)



Cat. No.

Product Description

MC-0200-SW

Functional control software for Mini Cooling Incubator including a USB cable





MD-MINI-B01

For 0.2ml tube (PCR strip tube), 32 wells, φ6.35mm, depth 19mm, (WxLxH) 47x71x32mm

MD-MINI-B02

For 1.5ml tube, 12 wells,φ10.8mm, depth 28.5mm, (WxLxH) 47x71x32mm

MD-MINI-B03

For 15ml tube, 6 wells, φ17.3mm, depth 70mm, (WxLxH) 47x71x75mm

MD-MINI-B04

For 50ml tube, 2 wells, φ29.2mm, depth 72mm, (WxLxH) 47x71x75mm

MD-MINI-B05

For 0.5ml tube, 12 wells, φ8.0mm, depth 25mm, (WxLxH) 47x71x32mm

MD-MINI-B06

For 2.0ml or 1.5ml tube, 12 wells, φ11.0mm, depth 30mm, (WxLxH) 47x71x32mm

MD-MINI-B07

For 1.5ml tube, 12 wells, φ10.9mm, depth 30mm, (WxLxH) 47x71x32mm

MS-BL95-E

Block Lifter, 95mm length, with E-type retaining rings





MD-MINI-LID

MD-MINI lid, (WxLxH) 83x58.5x31.5mm

MD-MINI-CAR-ADAPTER

Car adapter for MD-MINI and MC-0203, 1.5M
