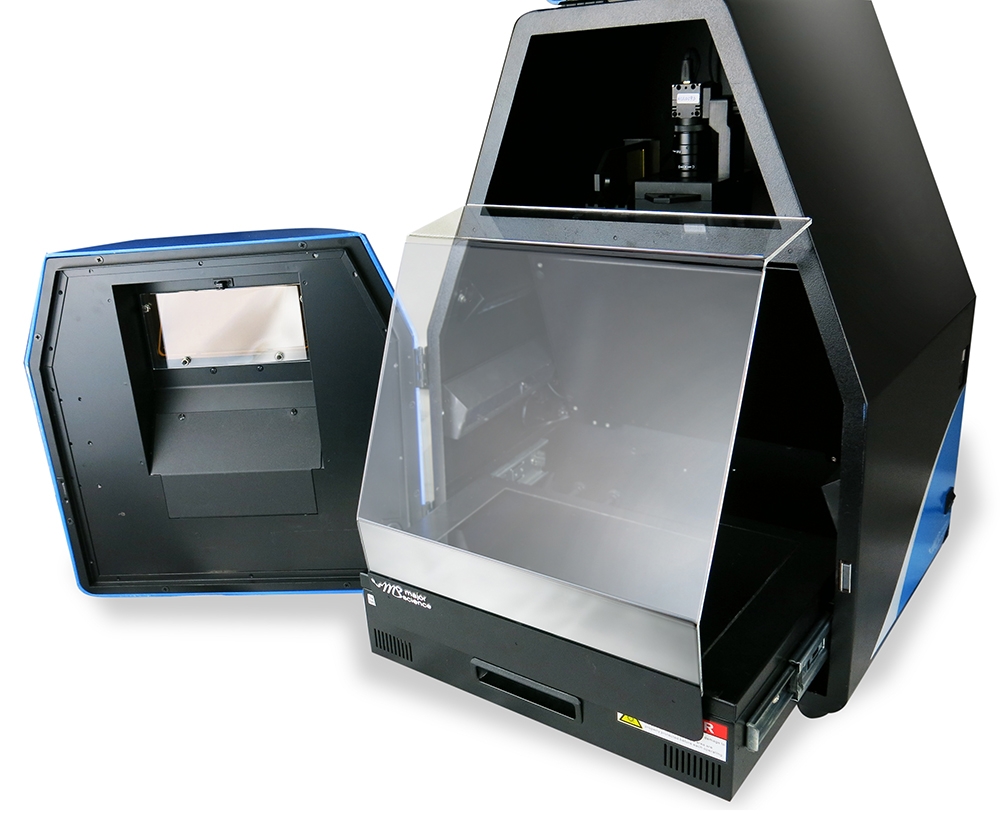

SMARTVIEW PRO 1100 IMAGER SYSTEM, STANDARD VERSION

SMARTVIEW PRO 1100 IMAGER SYSTEM, STANDARD VERSION


Cat. No. : 1MJC-UVCI-1100
Brand : : Major Science




 The SmartView Pro 1100 provides the basic feature and standard operation•  High resolution 5.0 megapixel monochrome camera (UVCI-1100)
•  PC integration with real time image
•  Capture/Analysis software included
•  Pull out UV Transilluminator for easy gel cutting
•  Easy installation, ready to use right out of the box
•  Pre-focused lens allow one touch image capture
•  Variety of optional accessories available
•  UV safety cut-off switch when door is open
•  CE and FCC certification



 proimages/3-Gel_Documentation_System/UVCI-B001.png

Sliding transilluminator

 proimages/3-Gel_Documentation_System/UVCI-B002.png

Easy installed by magnetic design

 proimages/3-Gel_Documentation_System/UVCI-B003.png

Easily gel cutting design with UV

 proimages/3-Gel_Documentation_System/UVCI-B004.png

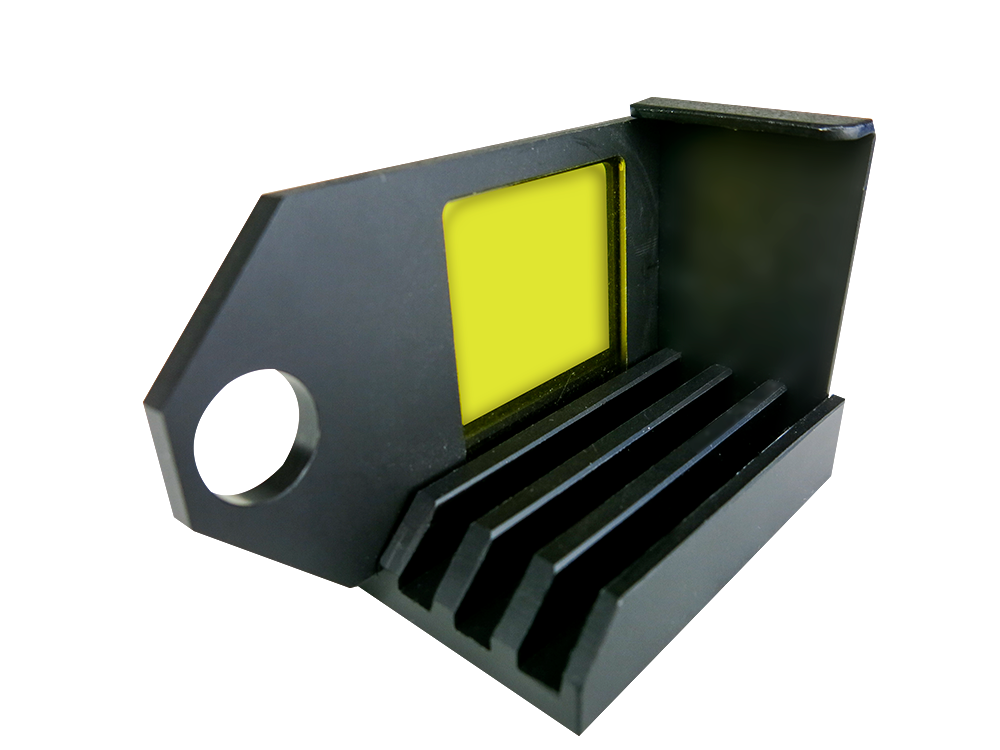

Up to 4 filters

 proimages/3-Gel_Documentation_System/UVCI-B005.png

easily placed by magnetic near camera

 proimages/3-Gel_Documentation_System/UVCI-B006.png

Optional

Blue Light device





 Model SmartView Pro 1100
Cat. No. UVCI-1100
UV Light Built-in drawer type UV Transilluminator 312(302)nm
Camera 1/2.5" 5M Pixel Monochrome  sensor
Pixels Size 2.2μmx2.2μm
Lens (Camera) 6mm, F1.2
Camera Video Output 12-bit
Filter (Camera) *Ordered separately Optical EtBr Filter / Optical SYBR Green Filter / Yellow Amber Filter / Orange Amber Filter
Image Storage PC
Software Support Window 10 / 8 / 7 (64bit & 32bit) / XP / Vista
Cabinet Pull out, sliding transilluminator
Field Of View (WxL) Approx. 10.2"x8.3" (260x210mm)
Dimension (WxLxH) Approx. 16.1"x15.9"x22.4" (410x405x570mm)
Weight Approx. 54lbs. (24.5kg)
Display LED indicator light
Viewing Window Built-in UV viewing window
Window Filter Built-in Viewing Window Amber Filter 560nm
Light White light (standard)
Optional Accessory  White Light Plate (power built-in)
Blue light (power built-in) 470nm
Safety CE, FCC
PC Connection USB port
1 D Analysis Software Cat. No. MBE-IMG-SW included
Saved Image BMP/JPEG/PNG/TIFF, 8 bit; PNG/TIFF, 16 bit
Rated Voltage 100-240V~, 50/60Hz, 2A
Cat. No. Product Description
UVCI-1000-WL White Light Plate for SmartView Pro Imager System, 1100 & 2100 series
UVCI-1000-BL Blue Light Module for SmartView Pro Imager System, 1100 & 2100 series
UVCI-1000-EB SmartView EtBr Filter, 610nm (for UV)
UVCI-1000-SG SmartView SYBR Green Filter, 520nm (for UV)
UVCI-1000-F1 Viewing window Amber filter, 560nm for SmartView Pro Imager System, 1100 & 2100 series

MBE-IMG-F3 SmartView Amber Filter 560nm
MBE-IMG-F4 SmartView Amber Filter 580nm

UVCI-1003 SmartView Pro UV Protection Shield, for 1100 & 2100 series
UVCI-1004 SmartView Pro Lens Filter Stand, can hold up to 4 lens filters, for 1100 & 2100 series
MBE-G-Y1 Amber Filter Viewing Glasses, 560 nm (optional)
MBE-IMG-SW MS 1D Analysis Software
DI-TOTALLAB Totallab 1D Gel Analysis Software






 proimages/3-Gel_Documentation_System/UVCI-2100_parts.png
